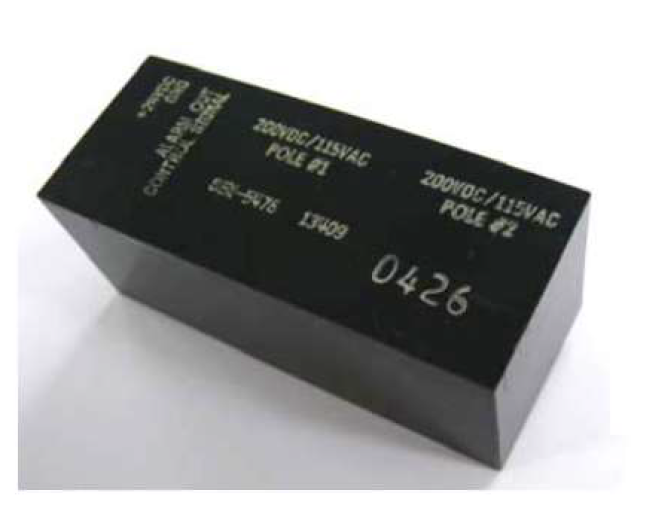

AC/DC solid-state power control module

explain:

Solid state power controller（Aviation SSPC）Module is a microcontroller based solid-state relay designed for aircraft or naval 115VAC/150VDC applications. This module integrates current sensing and overcurrent/overheat protection. This module is equivalent to a DPST relay with a common single-sided isolation control.

This product complies with the documents and standards.

MIL-STD-167.1（1）

MlL-STD-217F

P4855.IA

The characteristics of this module are:

·Epoxy resin shell structure; Solid state reliability; Low weight (60 gms); High power density; Same size as mechanical relay x1.5 inches; Single line direct insertion pins for easy PCB assembly

Electrical characteristics of aviation SSPC:

115VAC input: rated current 8A, low voltage drop; Typical value of 180mV

Current rating up to 12A, voltage drop of 280mV

Improved True 12t Algorithm Compensates for Different Current Waveforms

2. PO operation: 500V DC inter electrode isolation

High control circuit isolation: 1500V DC to any pole

Cross trip characteristic: Single pole fault, other electrodes within 50 gsec trip

Low voltage control current: 14 mA typical value @ 24V

True I 2 T protection from 12A to 90A

Constant Trip Protection for loads above 100A (3 gsec typical)

High overload capacity up to 250A; Repeated fault handling capability

Built in transient voltage suppressor to handle short-circuit current spikes

Overtemperature protection: Typical value of 75 ℃ ambient temperature

Internal isolation power supply for driving switch

Optical isolation control signal input and status output

Soft start to reduce EMC issues

Reset modules with low-level signals; The trip reset circuit is trip free

Built in hysteresis and noise functions to avoid switch interference
