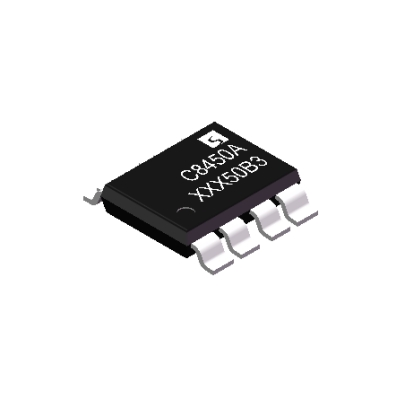

The SC8450/60 series is a new member of Weikewei's fully integrated current sensor product line. With industry-leading packaging technology, it achieves current wire impedance as low as 0.25m Ω on a 10mm * 11mm * 2.3mm wide body SOP-16 package, making it suitable for measuring power systems up to 150A. Suitable for customers for batch automatic surface mount production, it is the best solution for small volume, high current applications.

1. AEC-Q100 automotive qualified

2. Isolated measurement, with an isolation withstand voltage of up to 4.8kv @ 50HZ, for 1 minute

3. Can measure direct current and alternating current

4. Signal detection bandwidth up to 240kHz

5. Minimum current wire impedance: 0.2m Ω

6. Differential sensing technology has high anti-interference ability for external environment

7. Equipped with user configurable fault detection function

8. FLAG_F: Fast protection, suitable for detecting severe and harsh short circuits

9. FLAG_S: Slow protection, suitable for overload detection and supports user configuration

10. Supported static voltage output: 0.1VCC/0.5VCC

11. Response time as low as 2uS

12. Wide measured current range: 0A~150A
