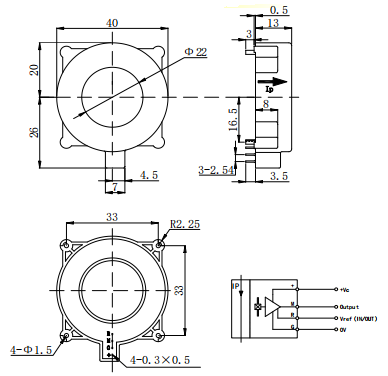

Mechanical characteristics:

• The environmental parameters are @ TA=25 ℃, RL=10 k ?

• Connector: 0.3mm × 0.5mm (× 4)

• Fixed hole size φ 1.5mm (× 4)

Product features:

Easy installation, small size, space saving, no insertion loss, strong anti-interference ability

Application areas:

DC motor driven static converter, communication power supply, uninterruptible power supply (UPS), switch mode power supply (SMPS), welding machine
