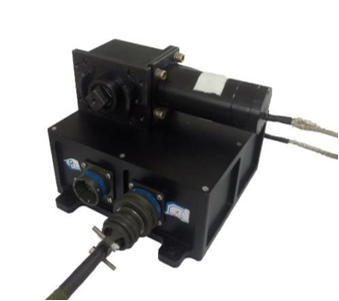

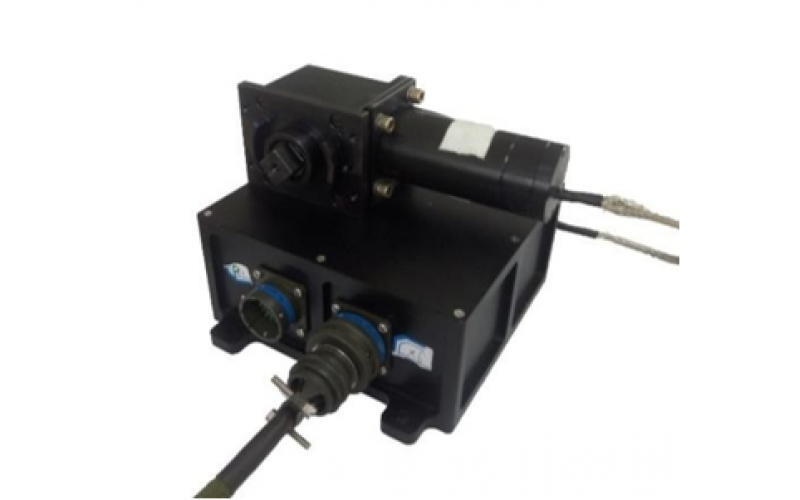

Main performance indicators of the 90Nm unmanned aerial vehicle steering control system: rated voltage: 28V, control accuracy: ≤± 0.4 °, return to zero accuracy: ≤± 0.5 °, sensitivity: ≤ 40mV, maximum output torque: ≥ 90N. m (when the voltage is 28V), overshoot: ≤ 10% (input 2V step signal), bandwidth: ≥ 4Hz (± 1V sine signal), control mode: analog signal, no-load speed: ≥ 125 °/s, single channel starting current: ≤ 20A
Main performance indicators of the 90Nm unmanned aerial vehicle steering control system:
Rated voltage: 28V
Control accuracy: ≤± 0.4 °
Zero return accuracy: ≤± 0.5 °
Sensitivity: ≤ 40mV
Maximum output torque: ≥ 90N. m (at 28V voltage) overshoot: ≤ 10% (input 2V step signal)
Bandwidth: ≥ 4Hz (± 1V sine signal)
Control mode: Analog signal
Idle speed: ≥ 125 °/s
Single channel starting current: ≤ 20A
