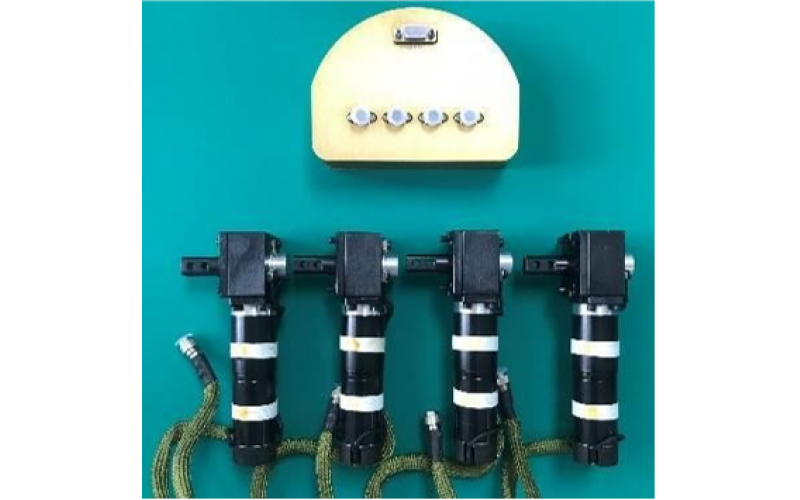

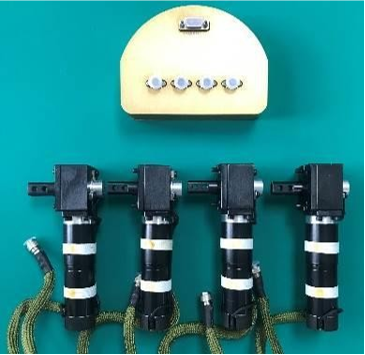

Main performance indicators of the 5Nm bomb rudder control system:
Rated output torque: | ≥3N.m |
Locking torque: | ≥5N.m |
Rated speed of the system: | ≥120°/s |
Maximum position of system output shaft: | ±25° |
Linear error: | 1%F.S |
Bandwidth: | ≥15Hz |
Control method: | RS422 |
