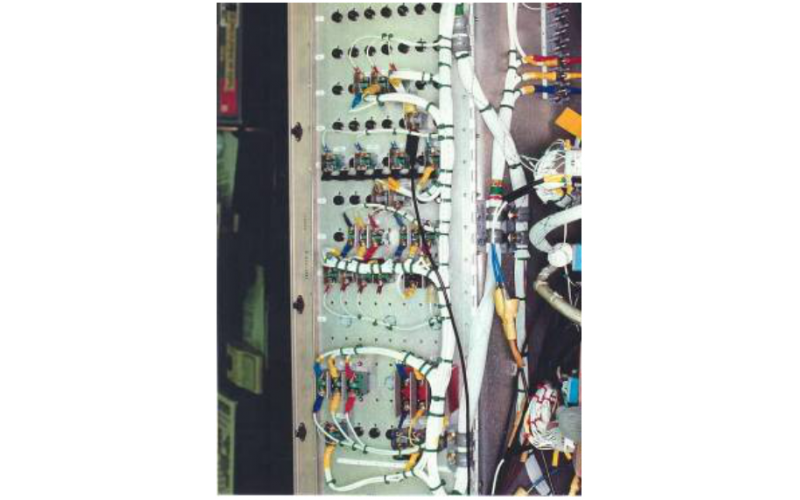

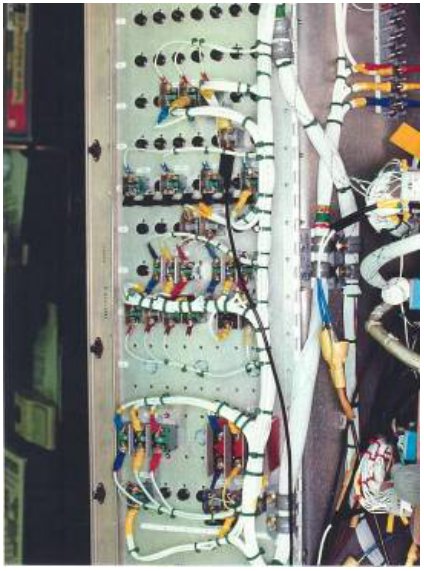

Hydraulic magnetic circuit breakers can be widely used in computers and their peripheral devices, industrial automatic control systems, telecommunications equipment, general power systems, UPS uninterruptible power supply equipment, railway locomotives, marine electrical systems, aerospace, special instruments, elevator control systems, and mobile power equipment.

Working temperature range: -40 ℃~85 ℃

2 Main technical parameters
2.1 Compliance with standards: IEC60934 IEC60947、GB17701、GB14048.2、UL1077、UL489A、UL489
2.2 Rated working voltage: DC80V DC125V、AC120/240V、AC240V、AC277/480YV
2.3 Mechanical and electrical lifespan: 10000 cycles (including 6000 cycles of electrical lifespan), UL489A electrical lifespan of 1000 cycles
2.4 Power frequency withstand voltage: Main circuit 3000V, auxiliary circuit 1000V
2.5 Product Certification: CCC CE、TUV、UL1077、UL489A、UL489
2.6 Auxiliary contact parameters: AC250V 5A

We can provide rated current products with an accuracy of up to 1A. The product racks include: 0.5-30A rack, 0.5-50A rack, 0.5-63A rack, 0.5-100A rack, and 1P-5P (considering multiple factors such as product voltage resistance, heat dissipation, and rated current).

We need professional technical support, please contact our marketing personnel.
